EvapoCooler : Improve your workplace environment |
EvapoCooler will keep Operators cool by providing a low temperature cooling breeze.
A powerful fan blows air that is cooled by the evaporation of fine mists, and operators can feel a cool breeze that is 8℃ lower than the surrounding temperature without getting wet.
The power consumption is only 38W, so EvapoCooler will not cause excessive wear and tear to the battery of a forklift.
Cools operator's neck
There is an air pump plus a water pump in the control unit shown.
This fan with a nozzle creates a very fine mist
You can easily adjust breeze from dry to wet
|
Why you should use EvapoCooler |
① Improving your workplace environment (safety measures)
You can protect forklift operators from heat exhaustion.
Also, EvapoCooler can help prevent accidents caused by the loss of concentration/attention from excessive heat.
② IMPROVING PRODUCTIVITY
During the summer, if a temperature increases by one degree, productivity is decreased by 1%.
By using EvapoCooler, operators can maintain high productivity.
|
What makes EvapoCooler different? |
|
① Lowers temperature up to 8℃ by special misting technology |
Fine mist can lower the surface temperature
up 8℃. It is known that the best way to cool
down a person who is suffering from heat
exhaustion is to cool body parts where large
blood vessels lie close to the skin
surface. EvapoCooler cools down the
operator’s neck effectively and quickly.
|
② Adjustable mist flow and fan speed
|
The flow can be adjusted to provide a dry or
damp cooling breeze. Using 3 fan speeds
EvapoCooler can easily adapt to suit multiple
environments from warehouse noise to
external weather conditions.
|
③ Energy efficient and compact
|
EvapoCooler uses 38W at the highest fan
setting therefore vehicle battery usage is not
significant. The control unit is small and light
weight, so it can be placed on a flat surface
using magnets or attached to a pillar using
cable ties.
|
Specifications and Videos |
Specifications
Model name EC-V-04S
Number of fans One (1)
Nozzle type Double fluids
Mist amount Adjustable (0~2L/h）
Cooling capacity 0.32kW （Water consumption：1L/h）
Fan speed Three (3) settings
Power consuption 38W
Voltage DC12V
Measurements* 220 x 160 x 165mm
Weight* 2.7kg
* control unit only
EvapoCooler in use

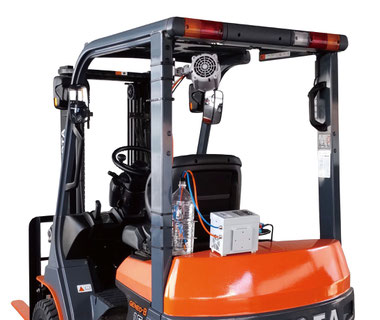

EvapoCooler on forklift
Operation of EvapoCooler
Where to install EvapoCooler
|
Photos |
Forklift
Mini construction machines
|
Q & A |
Q. How do you install EvapoCooler to a forklift?
A. A control unit can be placed on a flat surface using magnets or attached to a pillar using cable ties. A fan can be attached to a pillar using cable ties. Make sure that EvapoCooler does not obstruct the operator's view.
Q. How do you connect EvapoCooler to the battery of a forklift?
A. 【Forklifts that have a 12V battery】 You can connect directly to the battery using standard accessories of EvapoCooler.
【Forklift that have a battery other than 12V such as electric forklifts】 Please use a DC-DC converter to reduce the voltage to 12V.
Q. What is the water consumption?
A. The amount of mist can be adjusted by opening/closing the mist control valve. 200~400cc/hour provides the best experience
although it depends on the temperature/humidity.
Q. What are included in the box?
A. A control unit, a fan (with a nozzle), water/air tubes, power cables, a bottle cage, and other useful items for installation
such as cable ties.
Q. Is a water bottle/tank included?
A. A water bottle/ tank is not included.
Please use a 2L plastic water bottle. Please clean the bottle and fill the bottle with tap water.
When the bottle is left without cleaning, germs may grow.
Water that is not clean may cause adverse health effect and clogging of the nozzle.
Please make sure to replace the water bottle periodically.
Q. What type of water should be used?
A. Please use tap water.
Q. Is there any maintenance procedure?
A. If water remains in the tube or nozzle for a long time, it can cause the nozzle to be clogged.
Please read the instruction manual to remove water from the tube.
|
